Details

Technical parameter:
--Video input: 16channle BNC 1.0Vp-p 75Ω
--video output: 32 channel BNC 1.0Vp-p 75Ω
--Power Supply: AC220
--Ambient temperature: -30~60
--Dimension: 366Lx200Wx72H(mm)

* IC design
* SMD productive technology

Description

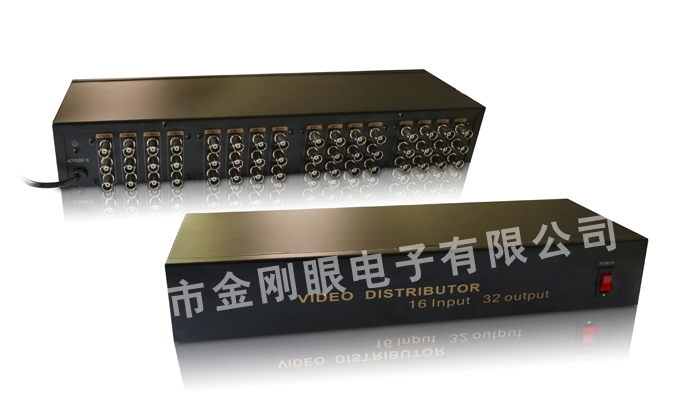

The V-1632 CCTV video distributor splits the video signal of up to 16 CCTV cameras into 2 video signals for each channel. There are 16 BNC video inputs and 32 BNC video outputs. This video distributor is used in closed circuit television security camera installations to enable video transmission to multiple devices such as CCTV monitors, surveillance digital video recorders, or other devices using RG59 coaxial cable.
This product is made for use with analog CCTV cameras and does NOT work with HD-SDI cameras. You can find HD-SDI video splitters.
