Specifications
Series Name：
Audio & Video splitter > rack mount BNC video distributor
Type：
V-1664C
Name：

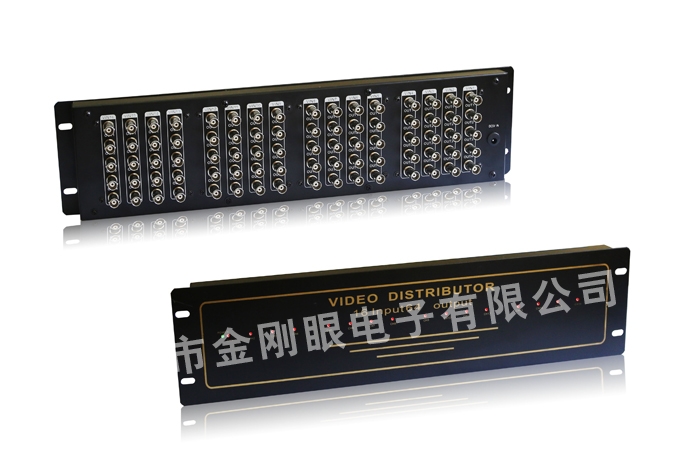

V-1664C BNC video distributor Rack
Specification：
485X225X100
Details
--Video input: 16channle BNC 1.0Vp-p 75Ω
--video output: 64channel BNC 1.0Vp-p 75Ω
--Power Supply: DC5V2A
--Ambient temperature: -30~60
--Dimension: 485X225X100(mm)
* IC design
* SMD productive technology
Description
The V-1664C CCTV video distributor splits the video signal of up to 16 CCTV cameras into 4 video signals for each channel. There are 16BNC video inputs and 64 BNC video outputs. This video distributor is used in closed circuit television security camera installations to enable video transmission to multiple devices such as CCTV monitors, surveillance digital video recorders, or other devices using RG59 coaxial cable. The DC power transformer is included with this product as well as the rack mount hardware.
This product is made for use with analog CCTV cameras and does NOT work with HD-SDI cameras. You can find HD-SDI video splitters.
