Specifications
Series Name：
The power supply > desktop adapter
Type：
KKE-ZB1204000FT
Name：

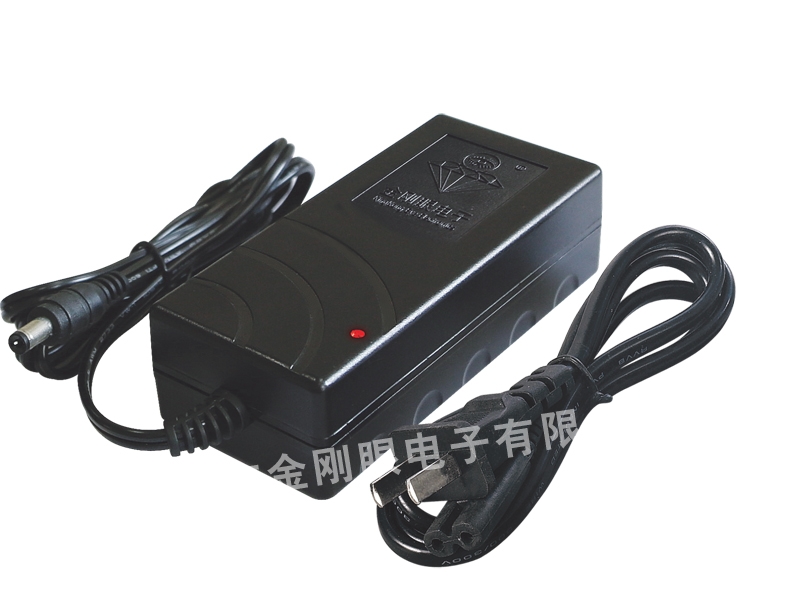

12V4A desktop adapter
Specification：
133×58×34mm
Details
-
nput voltage: 100 to 240V AC, 50/60Hz
-
Output connector: 5.5 x 2.1mm/others and 90cm or more
-
Output voltage: 3 to 24V DC ±5%
-
Maximum power: 24W
-
Ripple wave (mVp-p): <1%
-
Linear modulate: ±0.5% (maximum)
-
Temperature coefficient: ±0.02%/°C
-
Start time: ≤3s (240V AC input, io = 100%)
-
Guard time: ≥20ms (240V AC input, io = 100%)
-
Output standard: 12/4A
-
Override protection range: 115 to 200%VA, automatic recovery
-
Short-circuit protection: 1 channel, automatic recovery
-
Dimensions: 110 x 53 x 33mm
